The biggest limitation in 3D Construction Printing (3DCP) isn't the robot—it’s the reach. Traditional gantry systems are slow to assemble, expensive to transport, and require perfectly level ground.
Mobility Systems
AVENCO mobility solutions decouple the robot from the site’s constraints. Whether you need the all-terrain agility of our Crawler or the massive linear scale of our Mobile Rail, we provide the foundation for faster, smarter, and more profitable builds.
SECTORS SERVED
Construction
Buildings, pre-printed walls, and print-on-site wall applications enabled by robotic 3D concrete printing.
Landscaping
Production of garden furniture, concrete décor, and urban outdoor elements with complex geometries.
Environment
Manufacturing of artificial coral reef structures using 3D concrete printing technology.
The AVENCO Mobility Ecosystem
Engineered to remove site limitations from 3D construction printing, our mobility solutions bring factory-grade precision, faster deployment, and scalable performance to real-world construction environments.

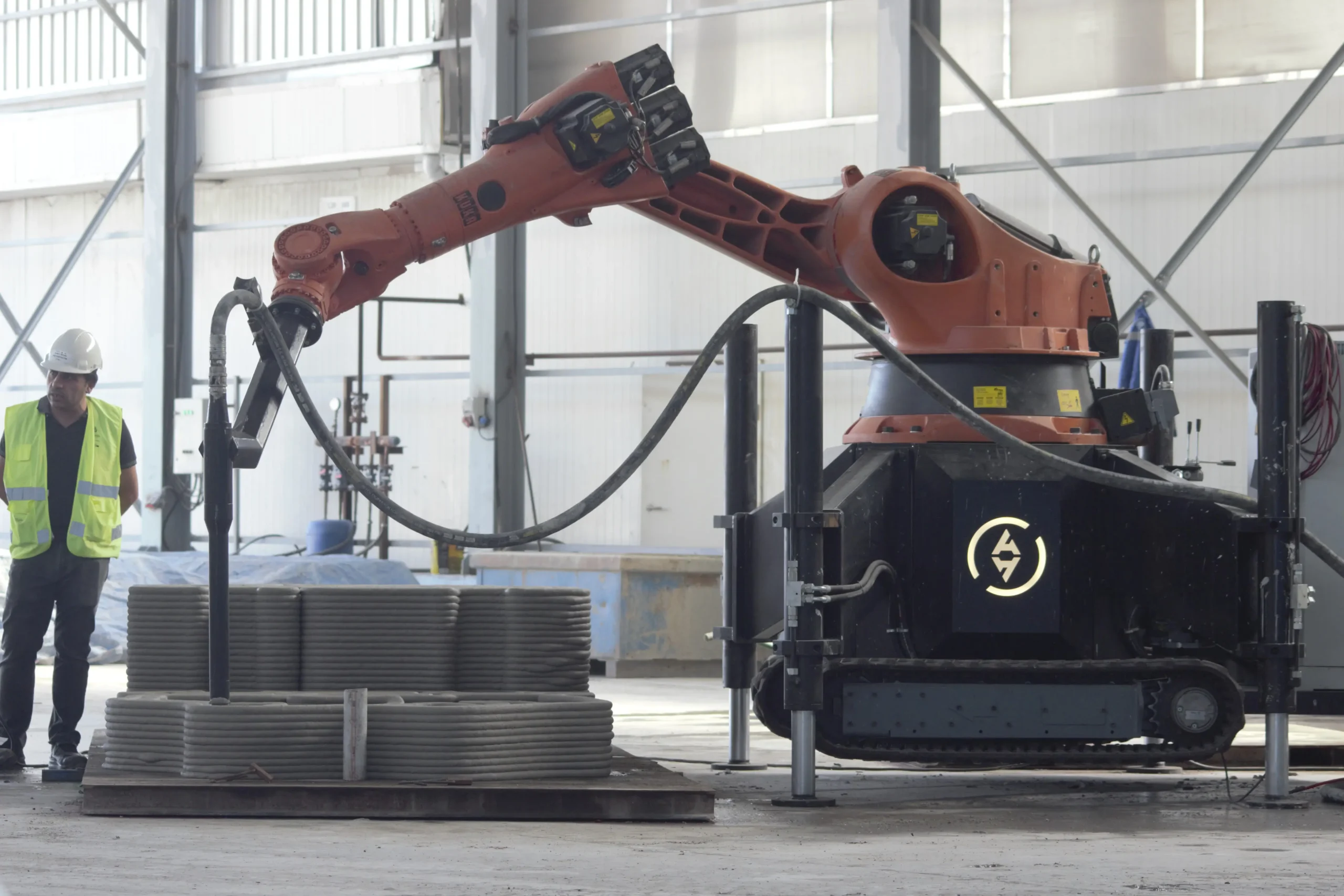

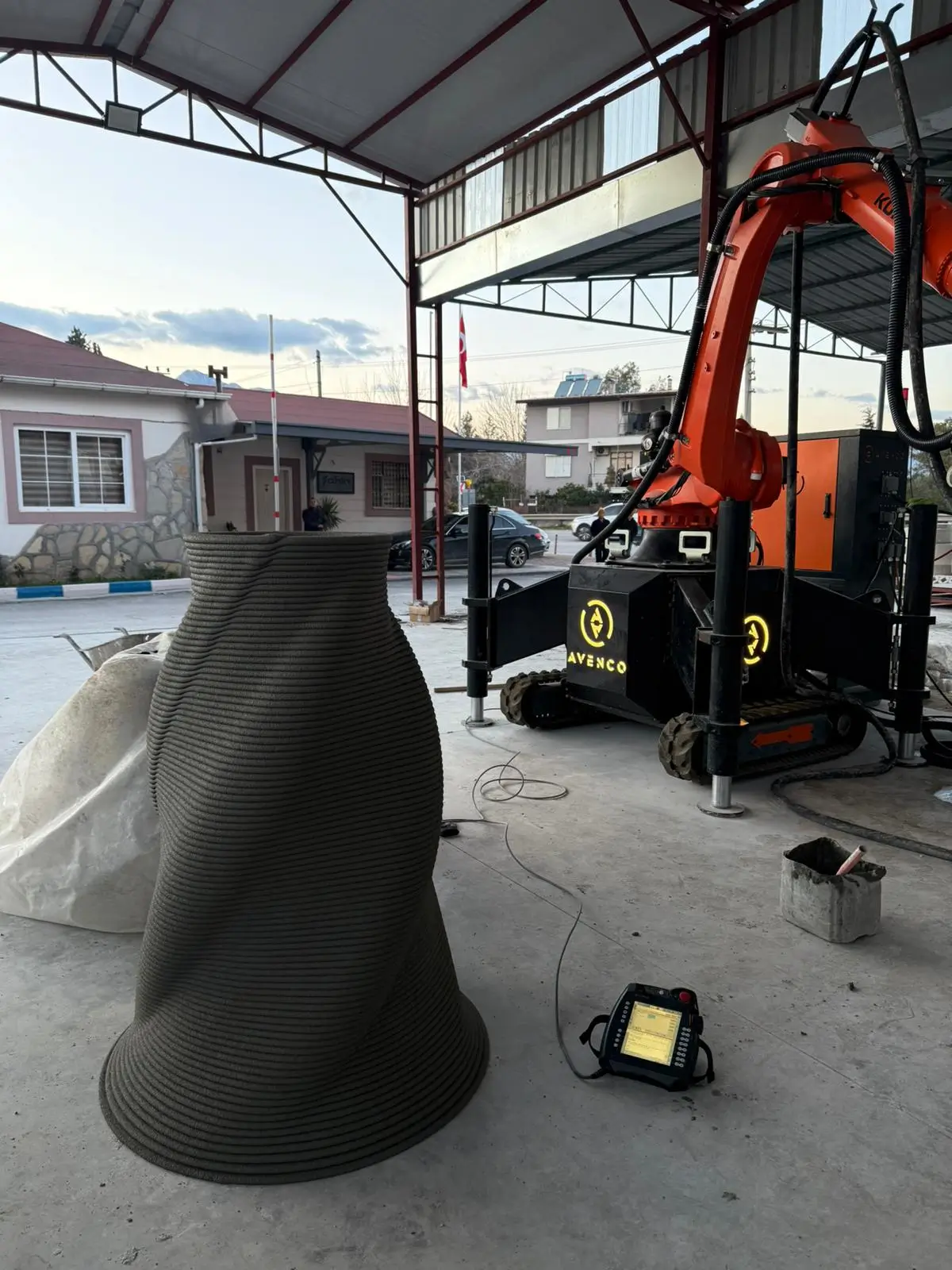

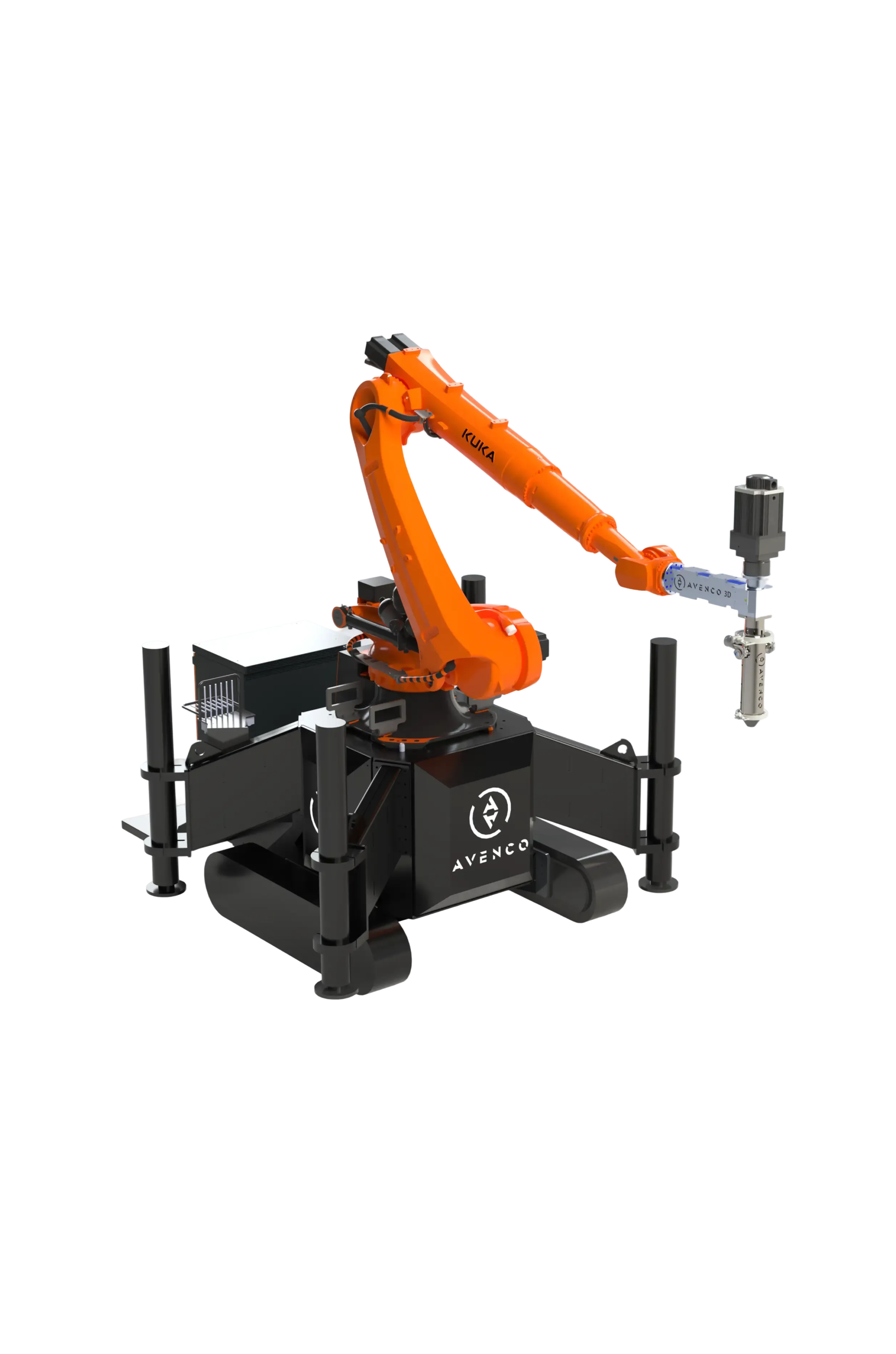

The Crawler
The Crawler is engineered for the "First Mile" of construction. It is a heavy-duty, tracked mobility solution that transforms a stationary industrial arm into a mobile printing factory. Designed for sites where concrete pads are a luxury, the Crawler brings the precision of the factory to the raw terrain of the job site.
Engine Type:
13.5 HP Internal Combustion (IC) Engine.
Total System Weight (excl. Robot):
2 300 kg
Drive Speed:
2 m/s (unloaded) for rapid site repositioning.
Leveling System:
4-Point Manual Hydraulic Jacks with a 1150 mm stroke.
Payload:
Standard 2,500 kg capacity (customizable for larger extruders).
Footprint:
2700mm x 2350mm x 3500mm (Transportable via standard flatbed).

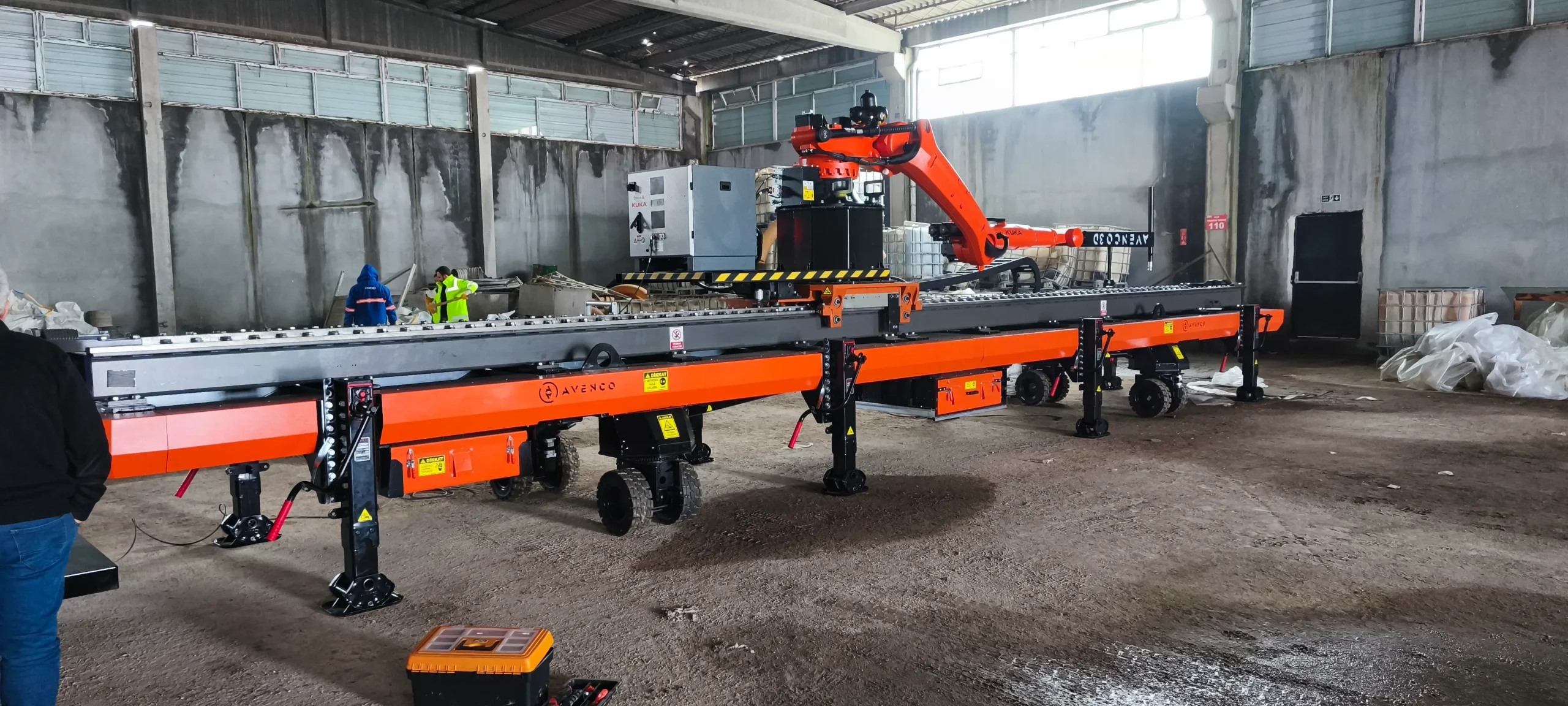

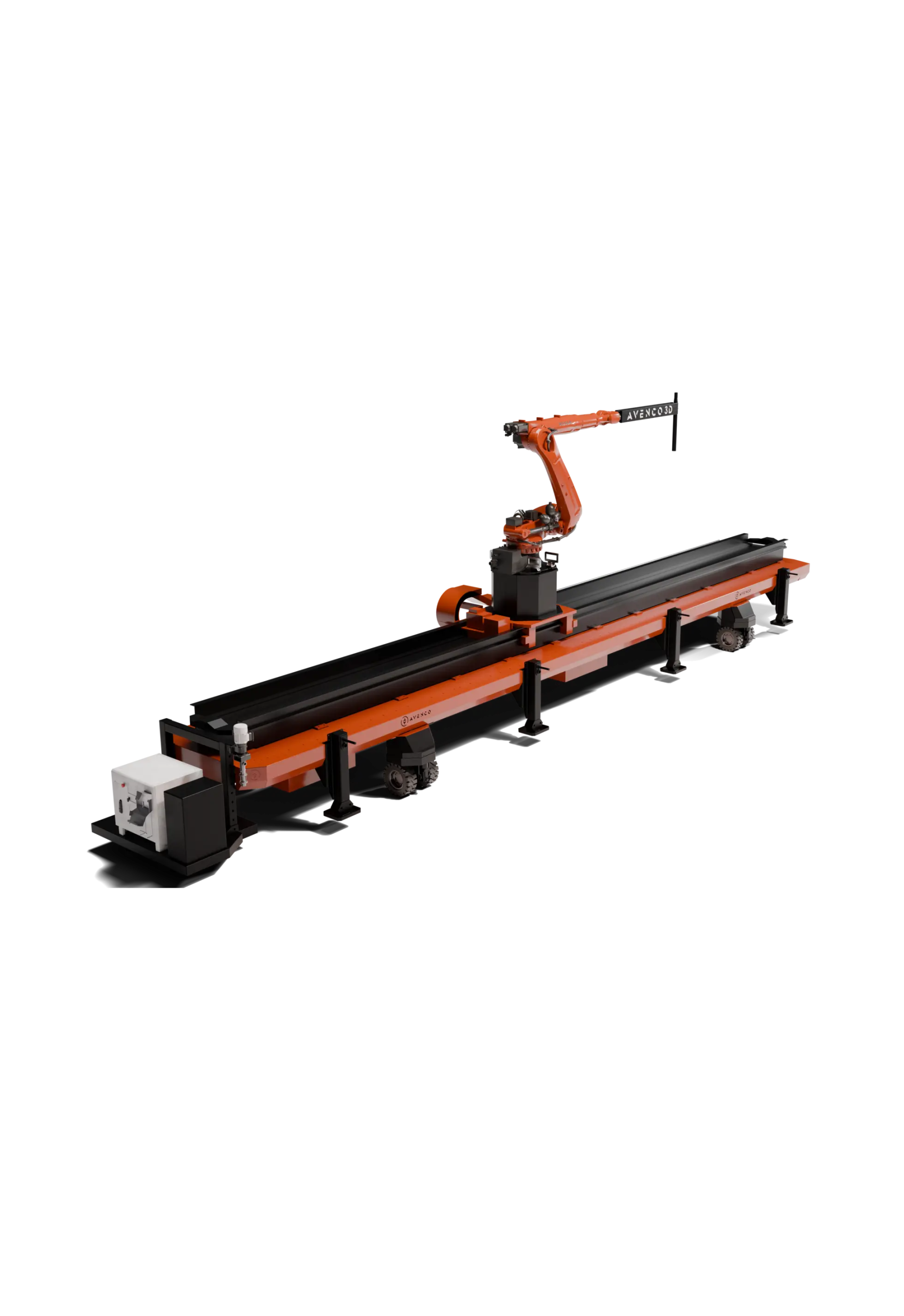

The Mobile Rail
The Mobile Rail is our solution for high-volume, continuous production. By integrating the rail as a synchronized 7th axis, the robot and the rail move as one. This allows for the construction of seamless walls up to 12 meters long with accuracy that manual construction cannot match.
Rail Length:
Modular options from 4 meters to 12 meters.
Integration:
Fully integrated KUKA External Axis.
Logistics Drive:
48V 210AH Battery system for wheel-based positioning.
Chassis Mass:
8,000 kg (12m version) for maximum vibration dampening.
Stability:
Manual Crank Jack system with 400 mm of vertical adjustment.
Precision:
1 mm per 10 meters.
The AVENCO Strategic Advantage
Why Manual Leveling?
In the world of 3DCP, "Simple" means "Reliable." While others rely on complex electronic sensors that fail in dusty, high-vibration environments, AVENCO utilizes robust hydraulic and mechanical leveling.
The Result: Less downtime, easier field repairs, and a machine that actually works on a real construction site.
Hybrid Power Logic
We separate the "Move" from the "Print."
Crawler: Gas engine for mobility; Electricity for printing.
Mobile Rail: Battery for positioning; 380V for printing. This ensures that the robot always has the clean, stable power it needs for precision, while the heavy lifting is handled by high-torque mechanical systems.
Massive Vertical Range
Our mobility solutions don't just move horizontally. With the Crawler’s 1150mm stroke and the Rail’s 4.5m effective height, you have the vertical clearance to handle foundations, varying floor levels, and high-ceiling designs without external scaffolding.
