AVEX Series Thermoplastic Extruder is an industrial thermoplastic 3D printing extruder developed for large-scale part production. With AVEX15, AVEX20, and AVEX32 models, it offers 15–50 kg/h output capacity, operates at printing temperatures of up to 450 °C, and enables high-efficiency, continuous manufacturing through robotic integration.
Thermoplastic Extruders
As a KUKA and Beckhoff partner, AVENCO combines robust extrusion hardware with advanced robotic CAM and AI-driven optimization technologies from ENCY, Ai Build, and Adaxis.
SECTORS SERVED
Defense
Enables rapid prototyping of housings, enclosures, and composite mold masters for low-volume production.
Aerospace
Supports the production of layup tools, non-flight composite tooling, and aerodynamic mock-ups.
Marine
Used for manufacturing hull sections, cores, and custom molds with corrosion-resistant materials.

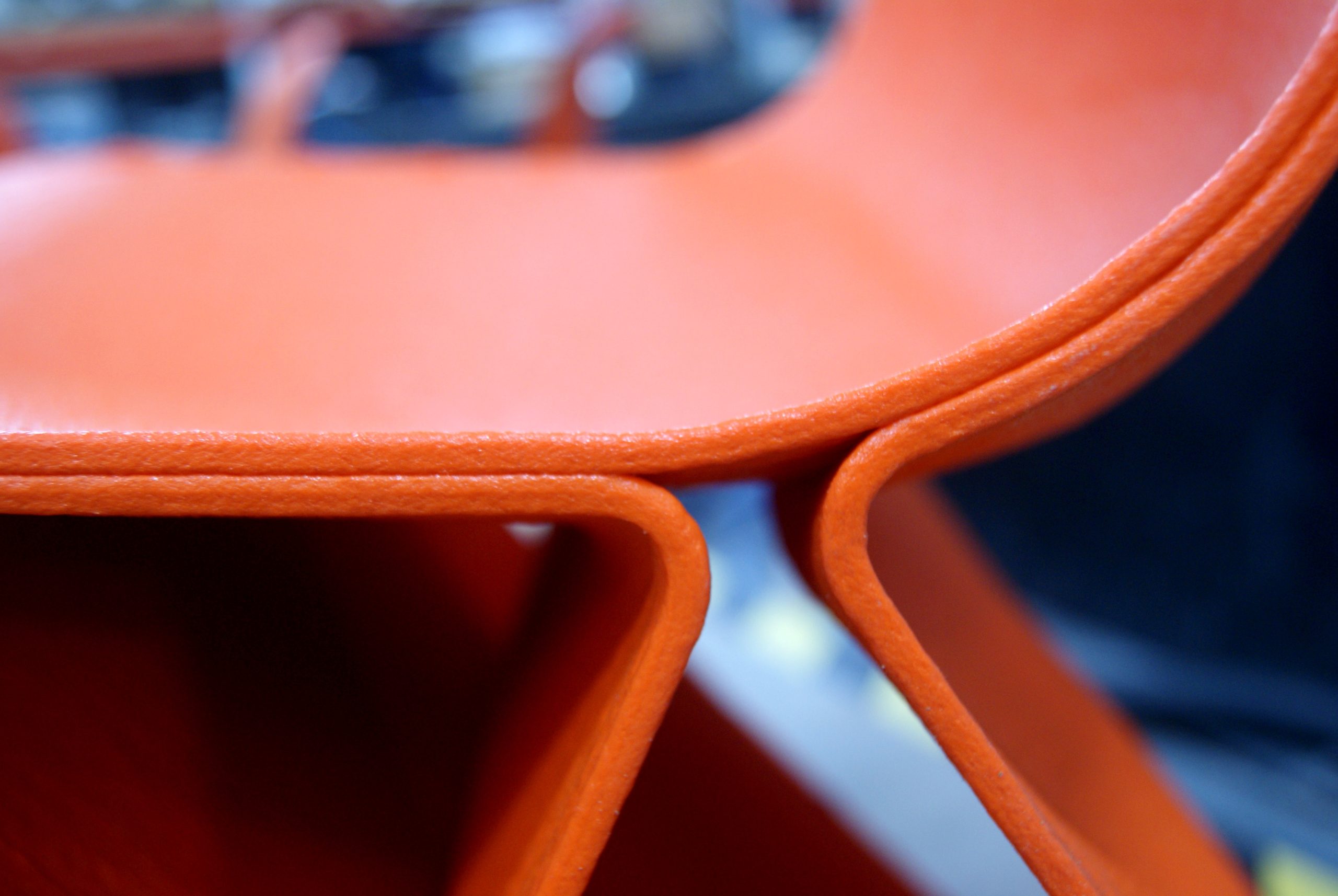

Furniture
Produces large sculptural shells, ergonomic forms, and custom fixtures for production lines.

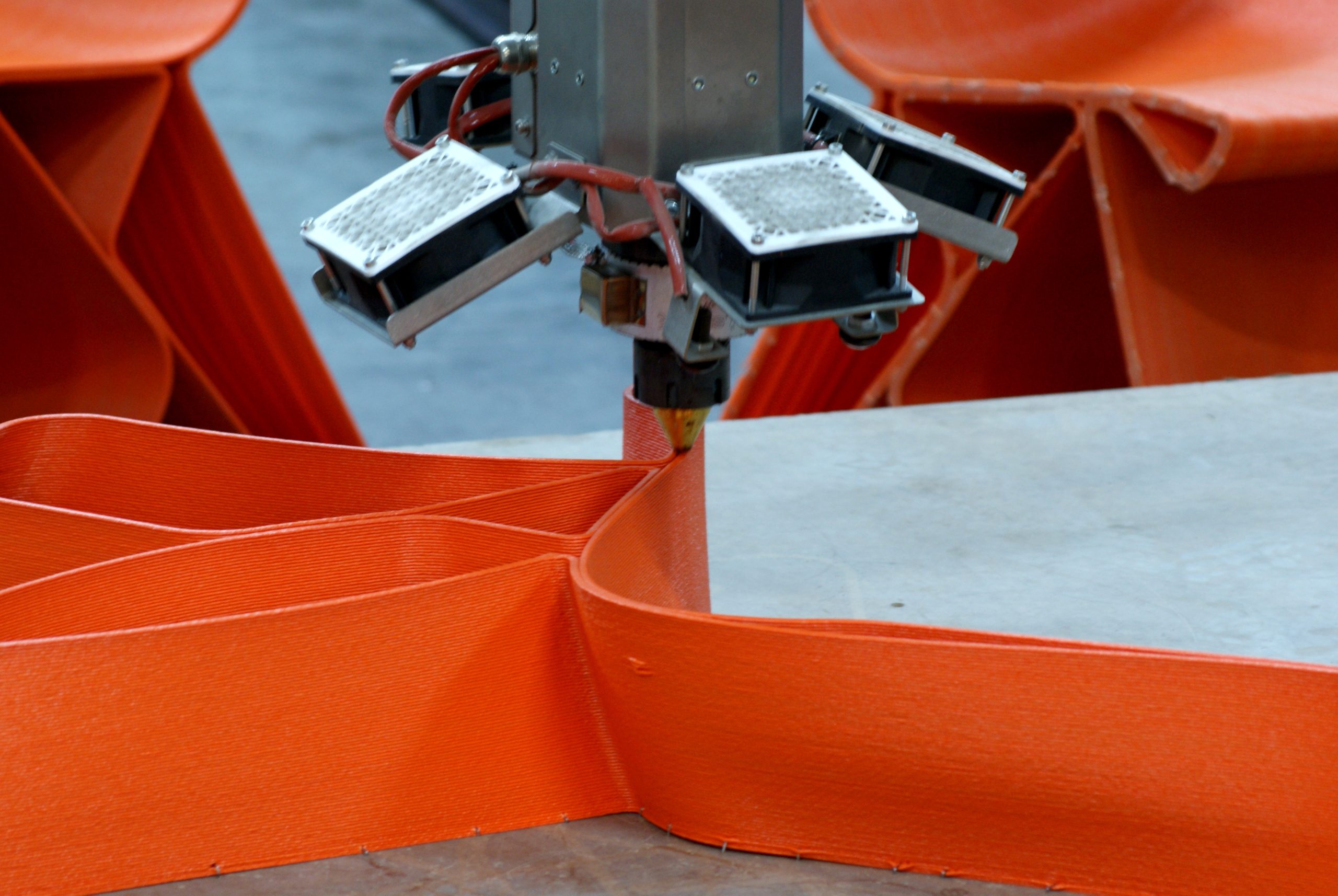

Interior Design
Creates parametric panels, bespoke decorative elements, and lighting housings with complex geometry.

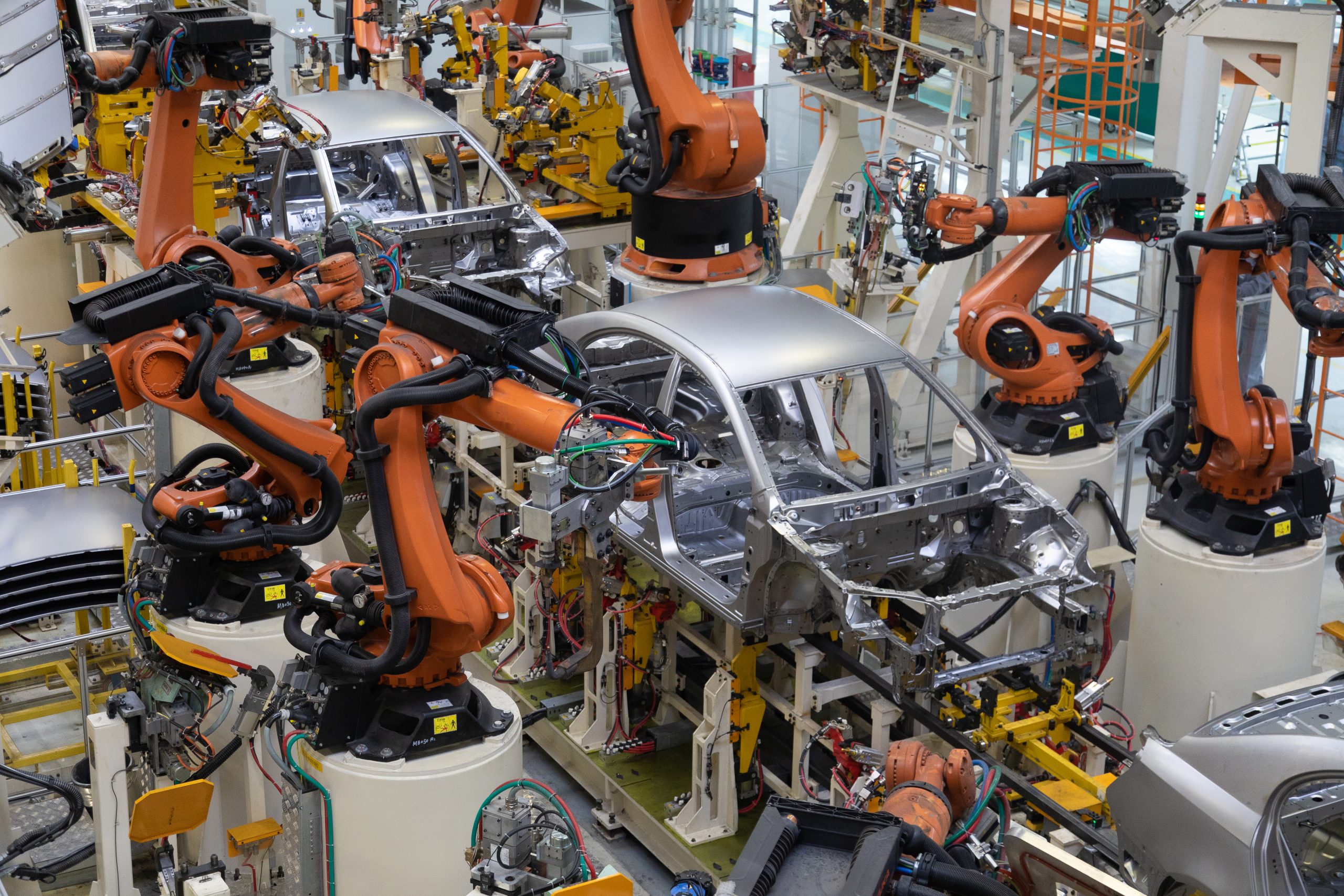

Automotive
Delivers prototype body panels, bumpers, composite tooling, and assembly aids.
Construction / Architecture
Enables the production of façade panels, casting molds, and large-format functional components.
AVEX Series
AVEX Series consists of industrial extruders designed for large-scale thermoplastic 3D printing, offering 15–50 kg/h output capacity with the AVEX15, AVEX20, and AVEX32 models. The series enables efficient and reliable production from prototyping to heavy-duty manufacturing through robotic integration, multi-zone heating, reinforced thermoplastic compatibility, and printing temperatures of up to 450 °C.

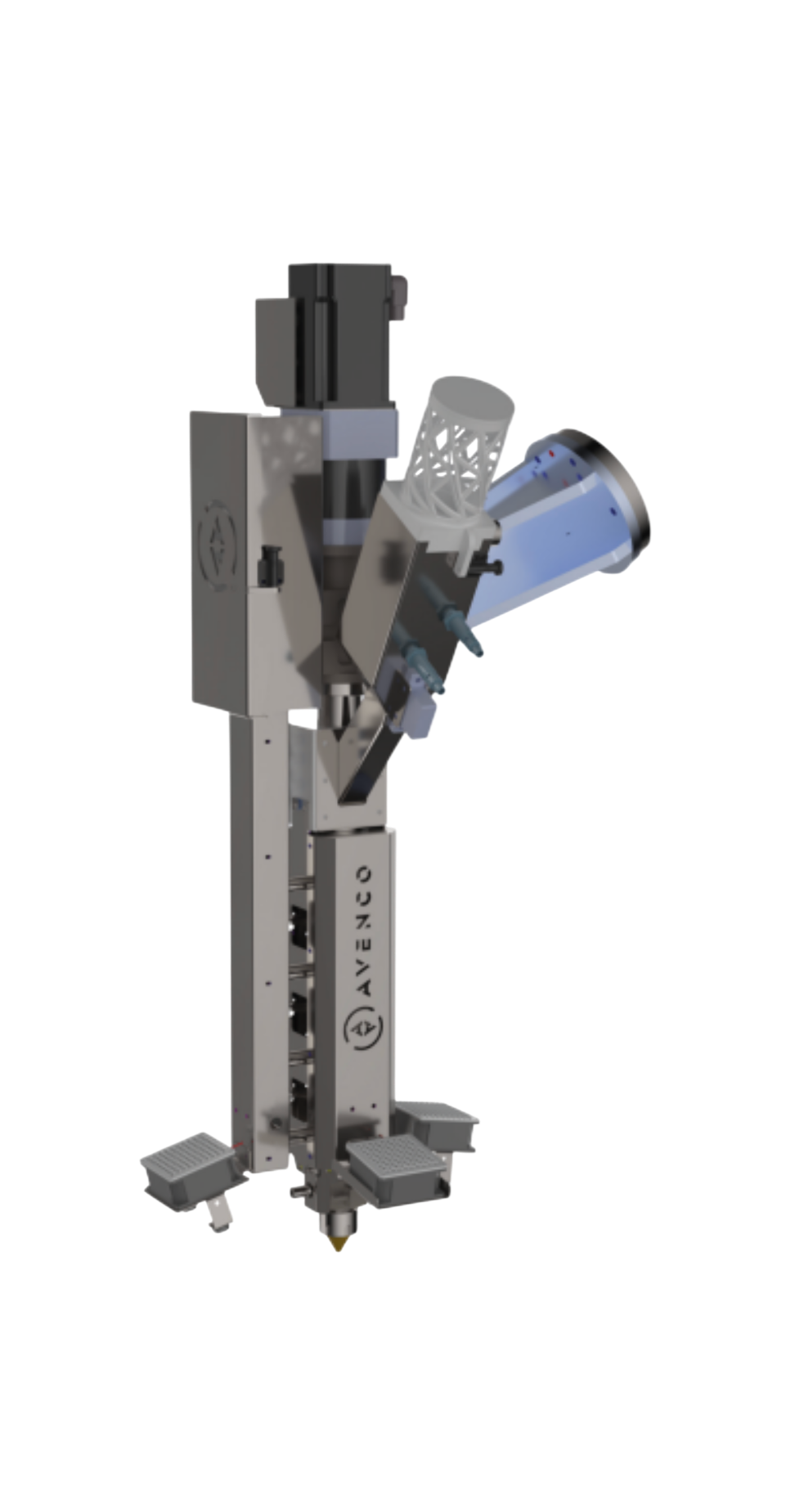

AVEX 15
AVEX15 is a compact and reliable thermoplastic extruder designed for R&D labs, universities, and mid-size prototyping applications.
Screw Diameter:
25 mm
Weight:
78 kg
Max Temperature:
Up to 450 °C
Capacity:
15 kg/hour
Dimensions:
1810 × 686 × 570 mm

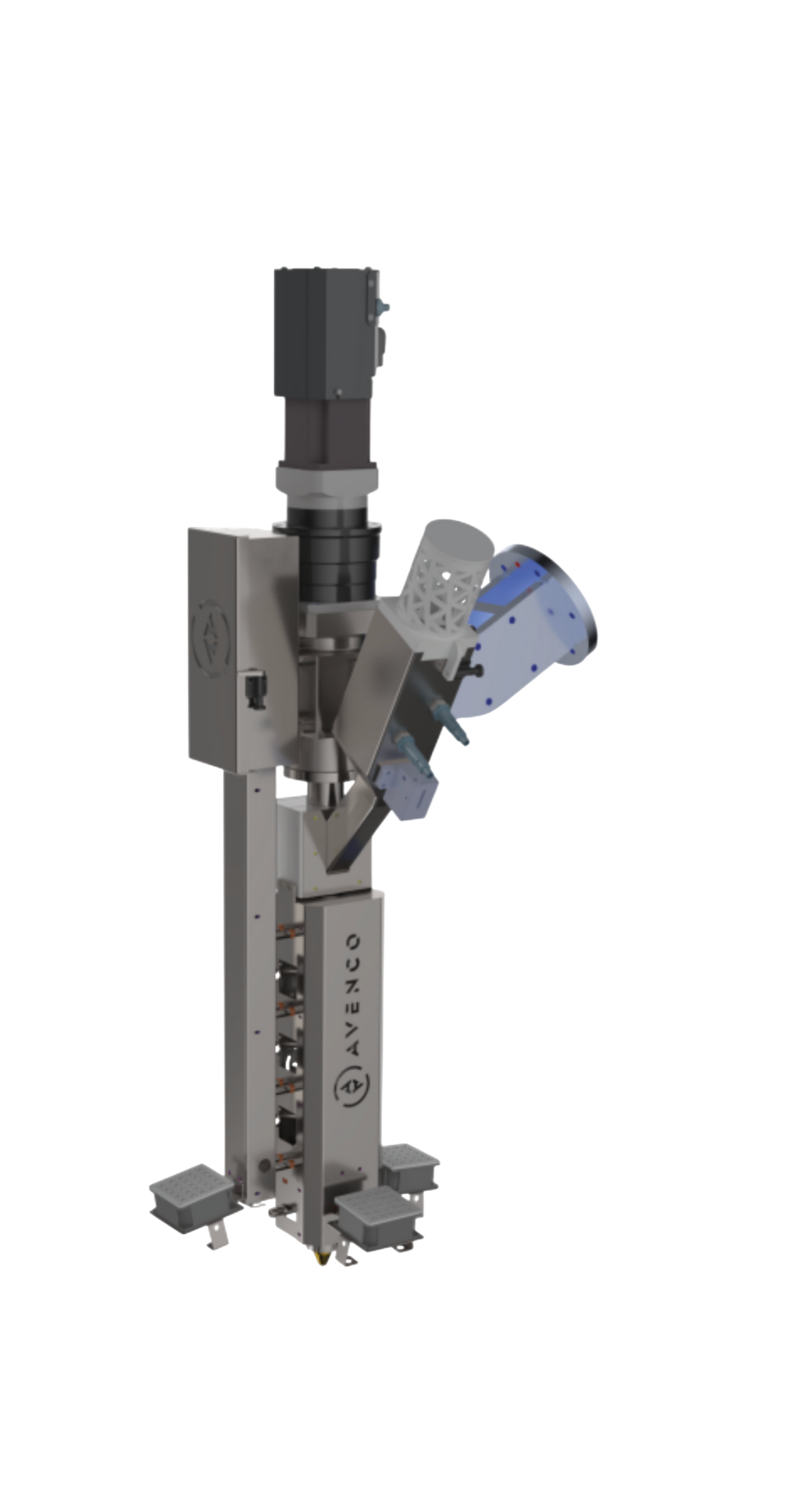

AVEX 20
AVEX20 is a workhorse extruder engineered for industrial prototyping, tooling, and mold production, offering a balanced footprint and throughput.
Screw Diameter:
25 mm
Weight:
84 kg
Max Temperature:
Up to 450 °C
Capacity:
25 kg/hour
Dimensions:
1450 × 715 × 525 mm

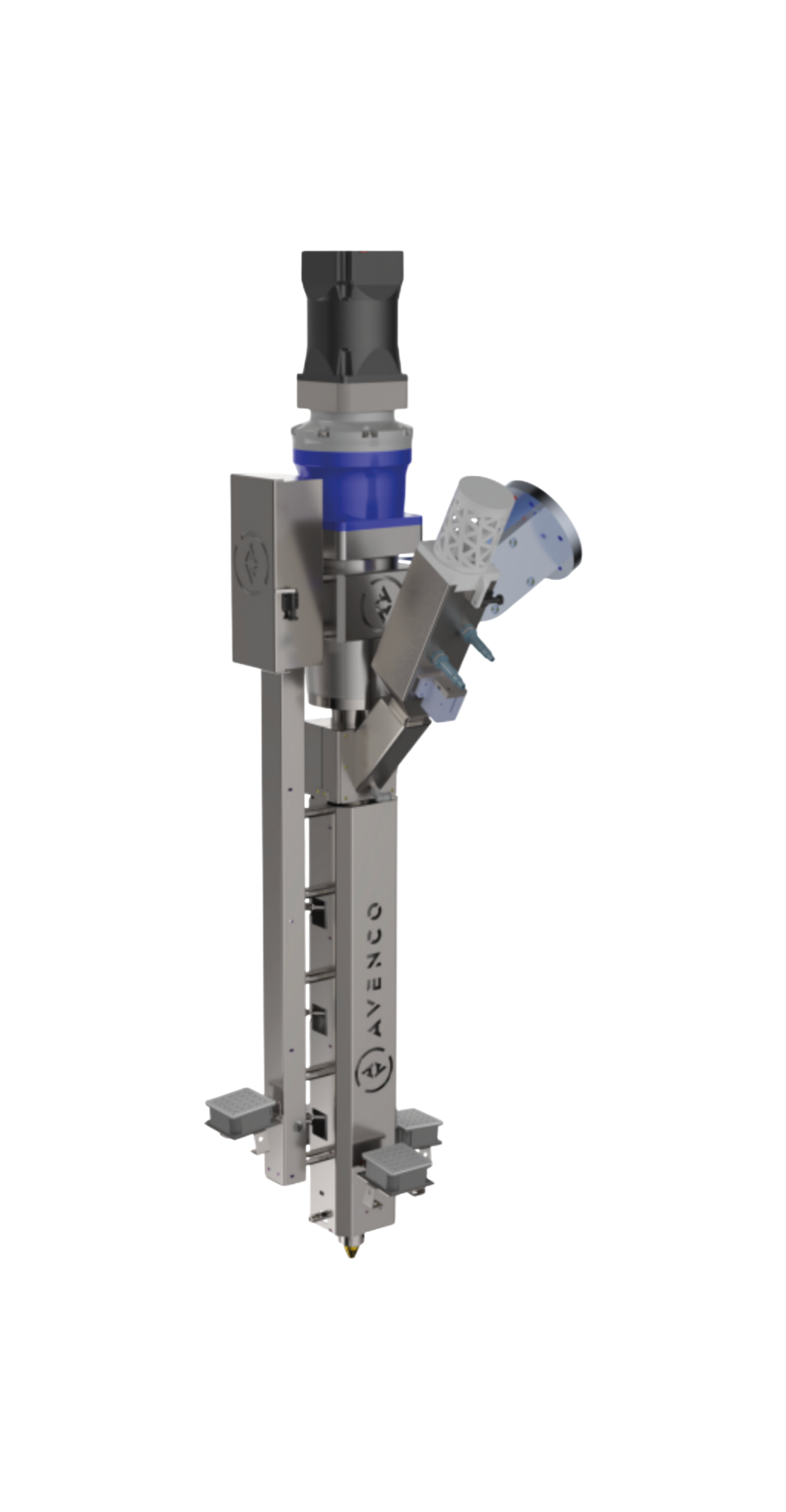

AVEX 32
AVEX32 is a high-throughput thermoplastic extruder developed for heavy-duty production and large structural parts.
Screw Diameter:
35 mm
Weight:
140 kg
Max Temperature:
Up to 450 °C
Capacity:
50 kg/hour
Dimensions:
1810 × 686 × 570 mm
Gallery
Load More
Frequently Asked Questions
What is the AVEX Series?
The AVEX Series is a range of industrial extruders developed for large-scale thermoplastic 3D printing and designed for seamless integration with robotic systems.
Which models are included in the AVEX Series?
The series consists of three models: AVEX15, AVEX20, and AVEX32, offering scalable solutions for different production needs.
What is the production capacity of the AVEX Series?
Depending on the model, the AVEX Series provides output capacities ranging from 15 kg/h to 50 kg/h.
What is the maximum operating temperature?
All AVEX models operate at printing temperatures of up to 450 °C.
Which materials are compatible with the AVEX Series?
The AVEX Series supports advanced thermoplastics suitable for LFAM applications, including glass- and carbon-fiber-reinforced materials.
Is the AVEX Series compatible with robotic systems?
Yes. AVEX extruders are designed for robotic integration and can be used with KUKA robotic platforms.
Which software solutions work with the AVEX Series?
The AVEX Series works with ENCY, Ai Build, and Adaxis, enabling advanced robotic CAM, AI-driven path optimization, and multi-axis manufacturing.
Which industries use the AVEX Series?
The AVEX Series is used in defense, aerospace, marine, automotive, furniture, interior design, and construction/architecture applications.
What are the main differences between AVEX15, AVEX20, and AVEX32?
The key differences are output capacity, screw diameter, and intended use cases: AVEX15 is suited for R&D and prototyping, AVEX20 for industrial prototyping and tooling, and AVEX32 for heavy-duty production and large structural parts.
Are installation and support services provided?
Yes. AVEX extruders are delivered with installation, commissioning, operator training, and 1-year free technical support.
